2011–2026 Ford F-250 / F-350 / F-450 / F-550 6.7L Powerstroke

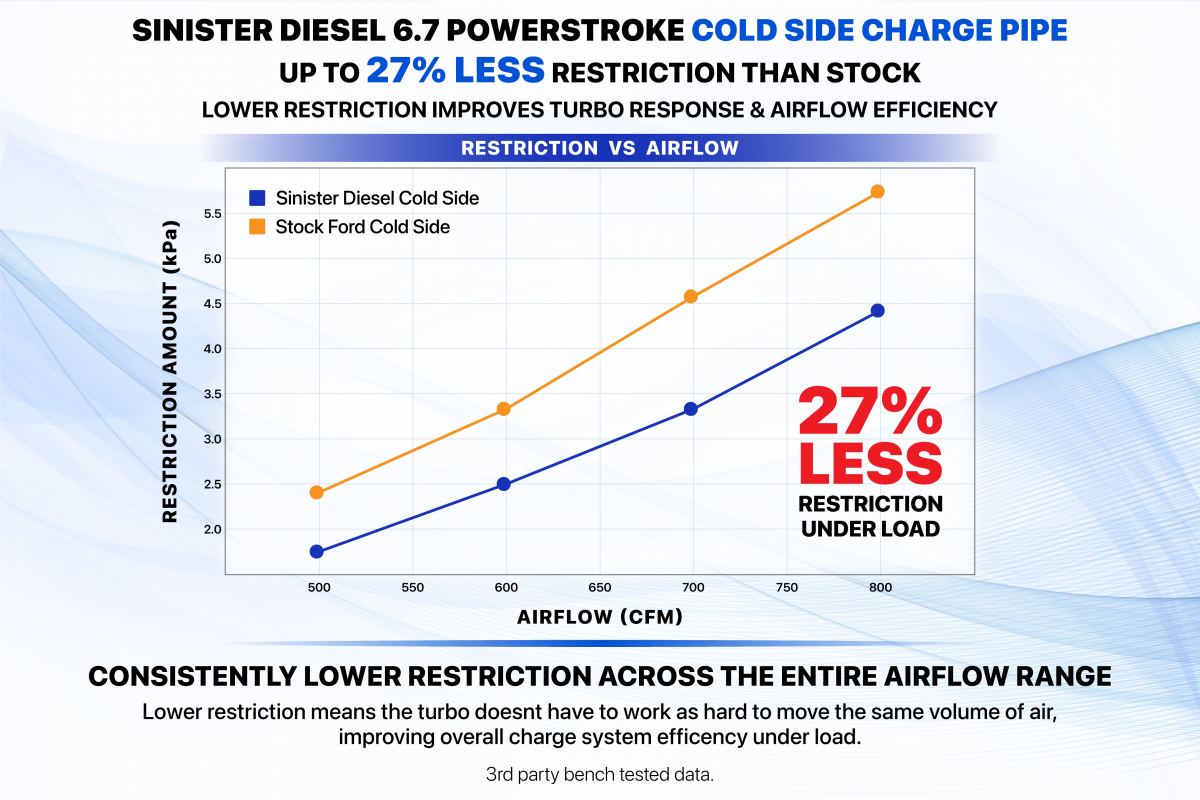

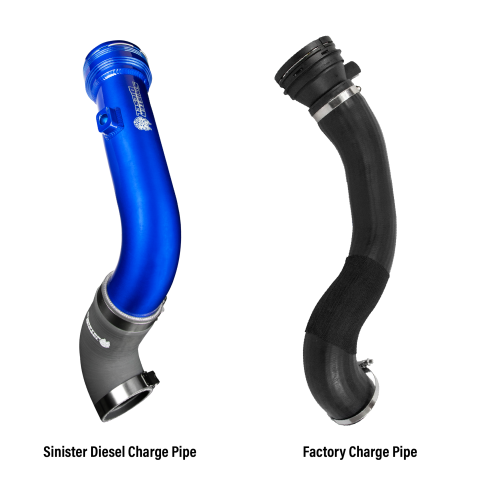

Sinister Diesel conducted independent airflow testing comparing their 3" mandrel-bent aluminum charge pipe against the factory plastic and rubber piping across the full usable airflow range.
The result: up to 27% less restriction compared to stock. Lower restriction means the turbo works more efficiently — delivering faster spool, more consistent boost, and better throttle response under load.
Why 3" instead of 3.5"? Bigger isn't always better. Oversizing beyond what the turbo and intercooler efficiently support reduces air velocity and increases system volume without delivering real gains. 3" is the engineered-optimum.
The Cold Side Charge Pipe is engineered for straightforward installation. Basic hand tools, your driveway, and 45–60 minutes. No cutting, no modifications, no fabrication.
Allow the engine to cool completely. Remove any heat shields or covers blocking access to the cold-side charge pipe — this is the pipe running from the intercooler outlet to the intake manifold / throttle body.
Remove the factory clamps and slide off the OEM plastic or rubber cold-side pipe. Clean the intercooler outlet and intake manifold mating surfaces. Install the included new O-ring and retaining clip on the throttle body port.

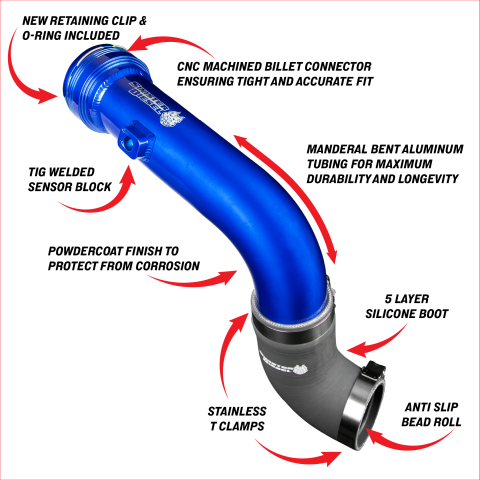

Slide the Sinister Diesel aluminum pipe into position. Install the 5-ply silicone boot with No-Slip Lip and torque the T-bolt clamps. Start the truck, confirm no boost leaks, and enjoy the upgrade. Done.
Full Ford 6.7L Powerstroke Super Duty coverage from 2011 through 2026. Two kit variants — select yours below.
%20(1)_480x480.png)
"Factory plastic pipe blew off at 60mph on the highway. Switched to Sinister's aluminum pipe immediately. Install was straightforward — about 45 minutes in the driveway. Night and day difference in boost response. Never looking back."
"Running a tune on my 2019 and the factory rubber section split under the extra boost. Installed this pipe and the No-Slip Lip boot has held solid through all my towing sessions. Quality is top tier. Sinister Blue looks incredible too."
"Picked this up with the fuel filter kit. Both are fantastic quality. The 3/4" T-bolt clamps are heavy duty — nothing like the cheap spring clamps other brands use. This is an upgrade you won't need to revisit."
Replace the factory weak point with engineered aluminum that holds under tow, under tune, and under pressure.
