50-State Legal with CARB EO # D-721-12
Fitment
Fits 2011–2016 Ford F-250 / F-350 / F-450 / F-550 6.7L Powerstroke
Note:
- Compatible with Pickup and Cab & Chassis models.
- Not compatible with 2017+ model years.
Key Features
- 3" Mandrel-Bent Aluminum Tubing – Replaces factory plastic piping with rigid, high-strength aluminum.
- Up to 27% Less Restriction vs. Stock – Verified through independent airflow testing.
- No-Slip Lip Silicone Boot – Internal ridge locks onto the pipe bead to help prevent boost blow-off.
- 5-Ply High-Performance Silicone Boot – Designed for durability under elevated boost pressure.
- 3/4" Wide Stainless Steel T-Bolt Clamps – Heavy-duty clamping force for secure sealing.
- New O-Rings & Retaining Clips Included – No need to reuse fatigued factory components.
- TIG-Welded Aluminum Construction – Built for long-term durability and structural integrity.
- 2-Year Warranty – Backed by Sinister Diesel quality and support.
Product Overview
The factory cold-side charge pipe on the 2011–2016 6.7L Powerstroke is plastic. Over time, heat cycles, vibration, and boost pressure cause the plastic pipe to weaken, expand, or crack — especially under towing or tuned conditions.
Plastic expands under boost. Aluminum does not.
Sinister Diesel replaces the failure-prone factory cold-side pipe with a full 3" mandrel-bent, TIG-welded aluminum charge pipe engineered for strength and airflow efficiency.
Independent airflow testing confirms up to 27% less restriction compared to factory piping across the usable airflow range.
Lower restriction improves charge system efficiency and helps maintain consistent boost delivery under load.
Why 3" Instead of 3.5"?
Some aftermarket options advertise oversized 3.5" tubing. While larger diameter may sound appealing, airflow performance is not determined by size alone.
Charge air systems must balance diameter, air velocity, and turbo response. Oversizing tubing beyond what the turbo and intercooler can efficiently support can reduce air velocity and increase system volume without delivering measurable gains.
Sinister Diesel engineered this cold-side pipe at 3" to optimize airflow efficiency, maintain proper air velocity, and support real-world towing and tuned applications — without sacrificing boost response.
This diameter provides substantial airflow improvement over the restrictive factory plastic pipe while preserving system balance and drivability.
More aluminum means more strength.
Some aftermarket kits rely heavily on silicone sections instead of full aluminum construction. Silicone can expand and billow under boost, affecting airflow consistency. Aluminum maintains its shape under pressure, preserving clean airflow and improving long-term durability.
To further prevent boost leaks, our silicone boot features a molded No-Slip Lip — an internal ridge that mechanically locks onto the pipe bead. Combined with our 3/4" wide stainless steel T-bolt clamps, this design helps prevent boot slippage under heavy boost or tuned applications.
Unlike many competitors, Sinister Diesel includes new O-rings and retaining clips. Many upgrades require reusing factory sealing components that have been heat-cycled and fatigued.
This is not a cosmetic upgrade. It is a structural and airflow improvement designed to eliminate weak points in the charge system.
What’s Included

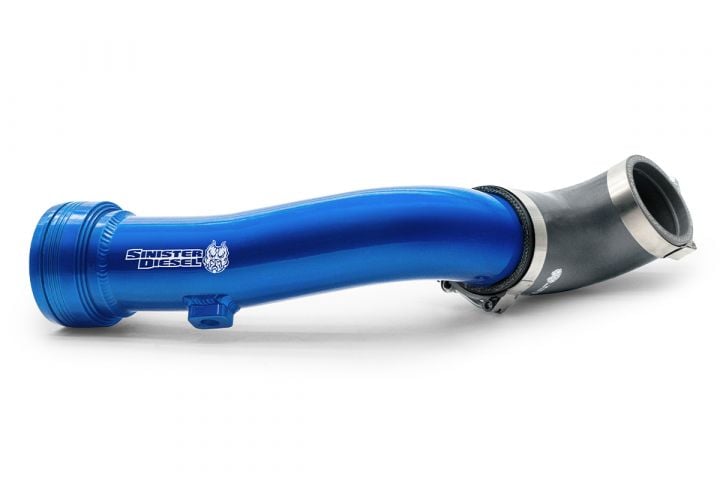

- 3" Aluminum Cold-Side Charge Pipe
- 5-Ply Silicone Boot with No-Slip Lip
- 3/4" Wide Stainless Steel T-Bolt Clamps
- New O-Rings
- New Retaining Clips
- Required Hardware
- Installation Instructions
Why Choose Sinister Diesel
Since 2009, Sinister Diesel has focused on eliminating known diesel failure points through real-world testing and proven engineering. Our products are designed as long-term solutions—not temporary fixes—so you can drive with confidence knowing your truck is protected.
