01
DIVERT A SMALL PORTION
A controlled portion of circulating coolant moves through the separate filter circuit.
RAM 2500 / 3500 · 5.9L & 6.7L CUMMINS
DIRTY COOLANT CAN COST YOU YOUR HEAT.
Casting sand, rust, and other debris can accumulate inside your Ram's heater core. A clogged core can mean weak cabin heat—and a repair that may require major dashboard disassembly.
The Sinister Diesel coolant filtration kit helps capture circulating contaminants before buildup becomes an expensive problem.
✓ VEHICLE-SPECIFIC KITS ✓ SERVICEABLE SPIN-ON FILTER
THE PROBLEM Clogged heater core
THE SOLUTION Bypass coolant filtration
REAL PARTS. REAL CONTAMINATION. REAL PROTECTION.
Billet aluminum constructionBuilt for long-term service
Bypass filtration designWorks alongside factory circulation
Vehicle-specific fitmentRam 2500 & 3500 applications
Easy filter changesServiceable spin-on design

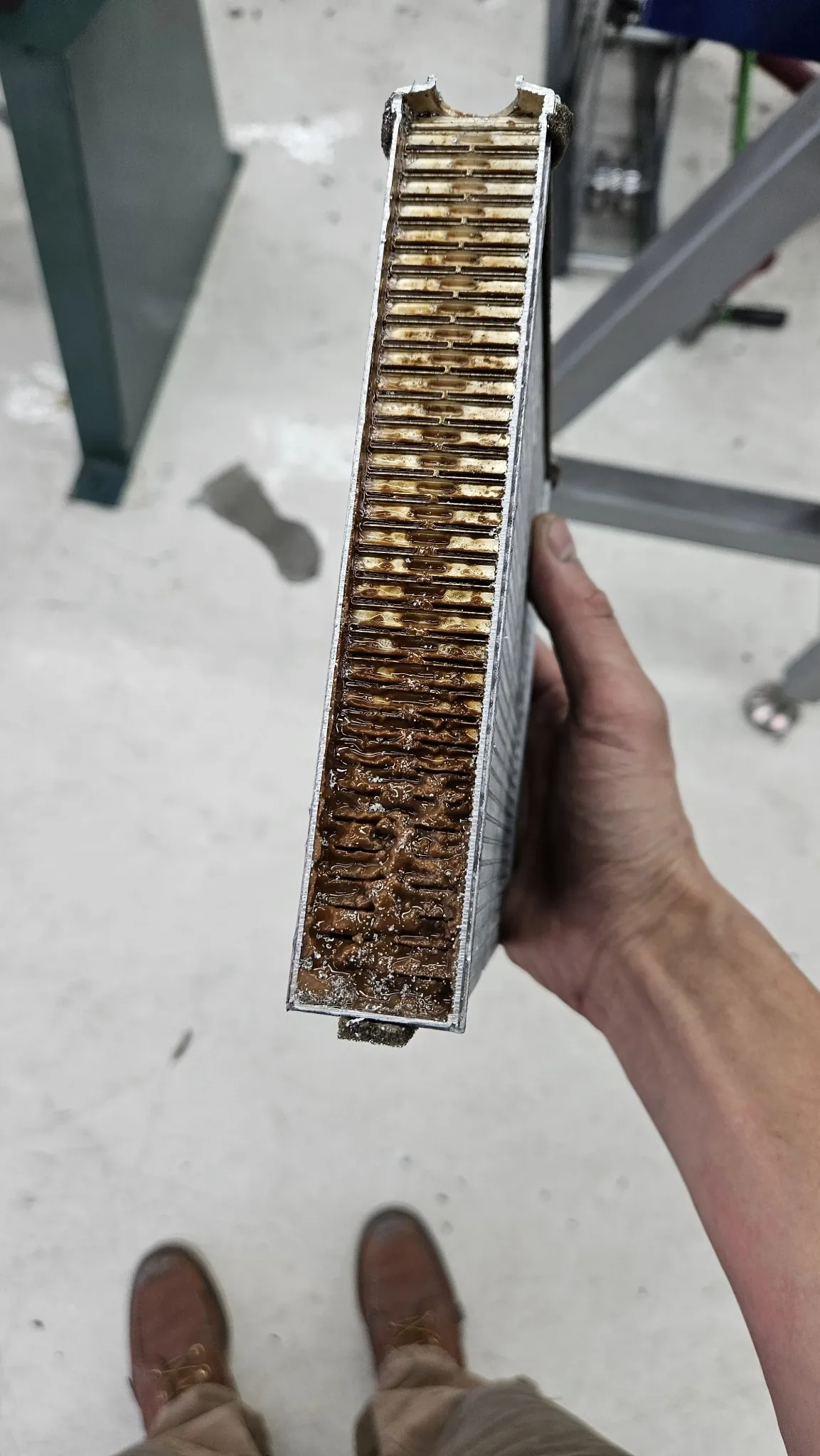

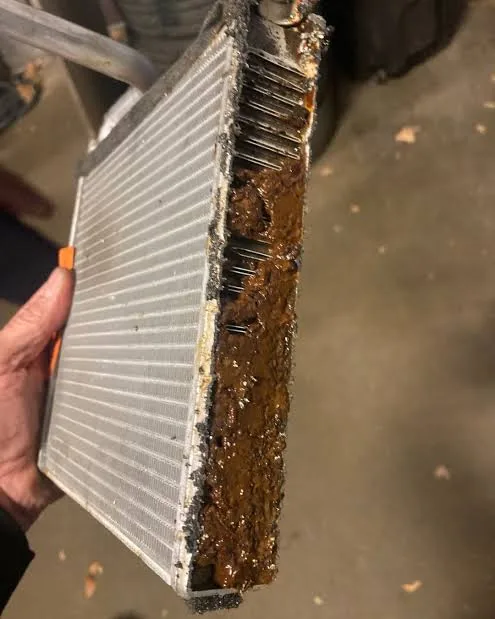

ACTUAL CLOGGED HEATER CORE
THIS IS WHAT DEBRIS BUILDUP LOOKS LIKE ↗
01 / THE PROBLEM
YOUR HEATER CORE HAS SMALL PASSAGES. CONTAMINANTS DON'T NEED MUCH ROOM.
Heater cores rely on coolant flowing through narrow internal passages to warm your truck's cabin. Over time, particles such as casting sand, rust, and cooling-system deposits can build up and restrict that flow.
01
Coolant carries debris
Particulate contamination continues circulating through the cooling system.
02
Heater-core passages restrict
Accumulated material can reduce coolant flow and cabin heating performance.
03
Repairs become expensive
On some Ram applications, heater-core replacement requires extensive dash disassembly.
THE POINT IS SIMPLE.
FILTER THE DEBRIS. HELP PROTECT THE HEAT.
02 / THE SOLUTION
A SMARTER WAY TO KEEP COOLANT CLEANER.
The Sinister Diesel coolant filtration system uses a bypass filter to capture suspended particles over time without placing the filter directly in the engine's main coolant flow path.
02
CAPTURE PARTICULATES
The replaceable spin-on filter collects contaminants such as casting sand, rust, and suspended debris.
03
KEEP FILTERING OVER TIME
Filtered coolant returns to the system while the primary cooling circuit continues operating.
GOOD TO KNOW Coolant filtration is preventive maintenance. It does not clear an already blocked heater core or replace proper coolant service and diagnostics.
03 / FIND YOUR KIT
BUILT FOR YOUR CUMMINS.
Select your truck's engine/year range to view the correct coolant filtration kit.
RAM 2500 + 3500

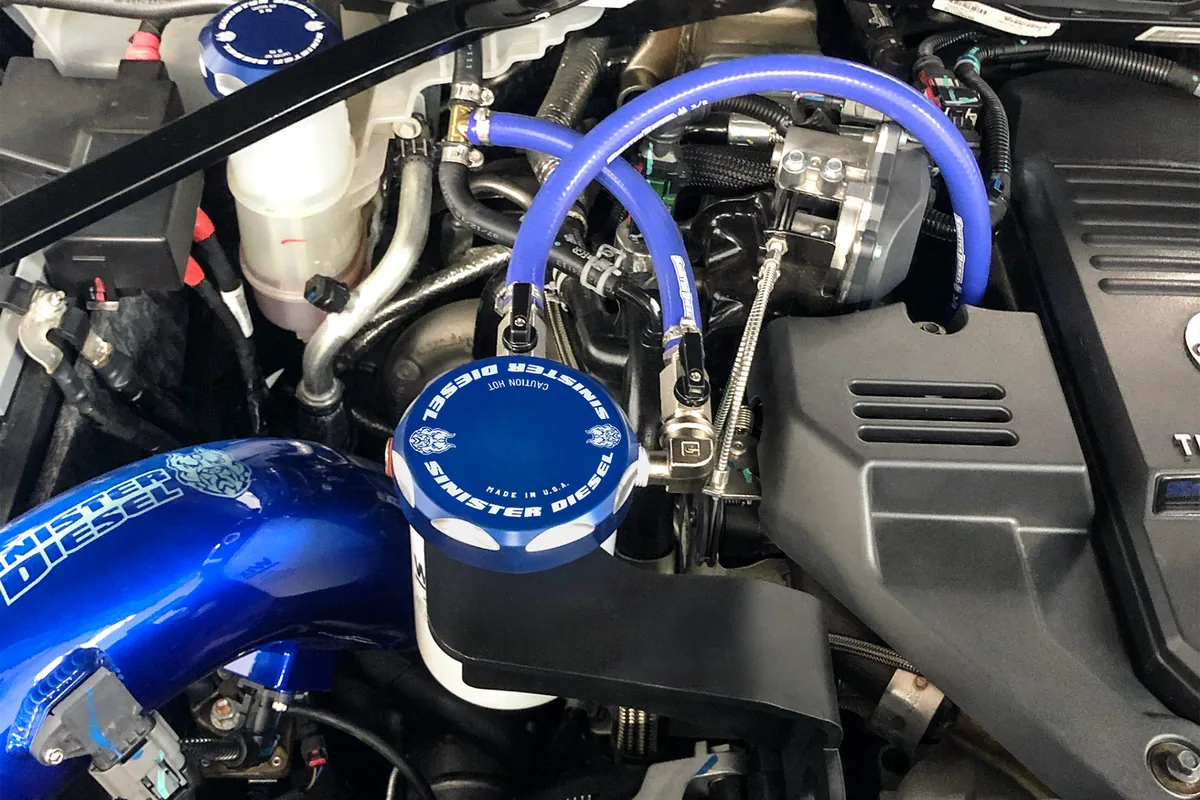

INSTALLED PRODUCT EXAMPLEMATCHED APPLICATION
2003–2007 5.9L CUMMINS
A vehicle-specific coolant filtration system for Dodge Ram 2500 and 3500 trucks with the 5.9L Cummins diesel.
- Billet filter head and mounting hardware
- Reinforced coolant hoses and fittings
- Replaceable spin-on coolant filter
IMPORTANT FITMENT NOTE: Some aftermarket cold air intake systems occupy the same mounting space. Verify clearance before ordering. If your truck is a 2025 or newer model, contact us to confirm current availability and fitment.
04 / BUILT FOR DIESEL TRUCKS
REAL HARDWARE. REAL PROTECTION.
Every Sinister Diesel Cummins coolant filtration kit is built around a durable filter assembly, reinforced hoses, and application-specific installation hardware. A serviceable filter helps remove circulating particulate contamination before it can accumulate in sensitive cooling passages.
✓Billet aluminum filter head
✓Reinforced silicone hoses
✓Serviceable spin-on filter
✓Engine-specific brackets

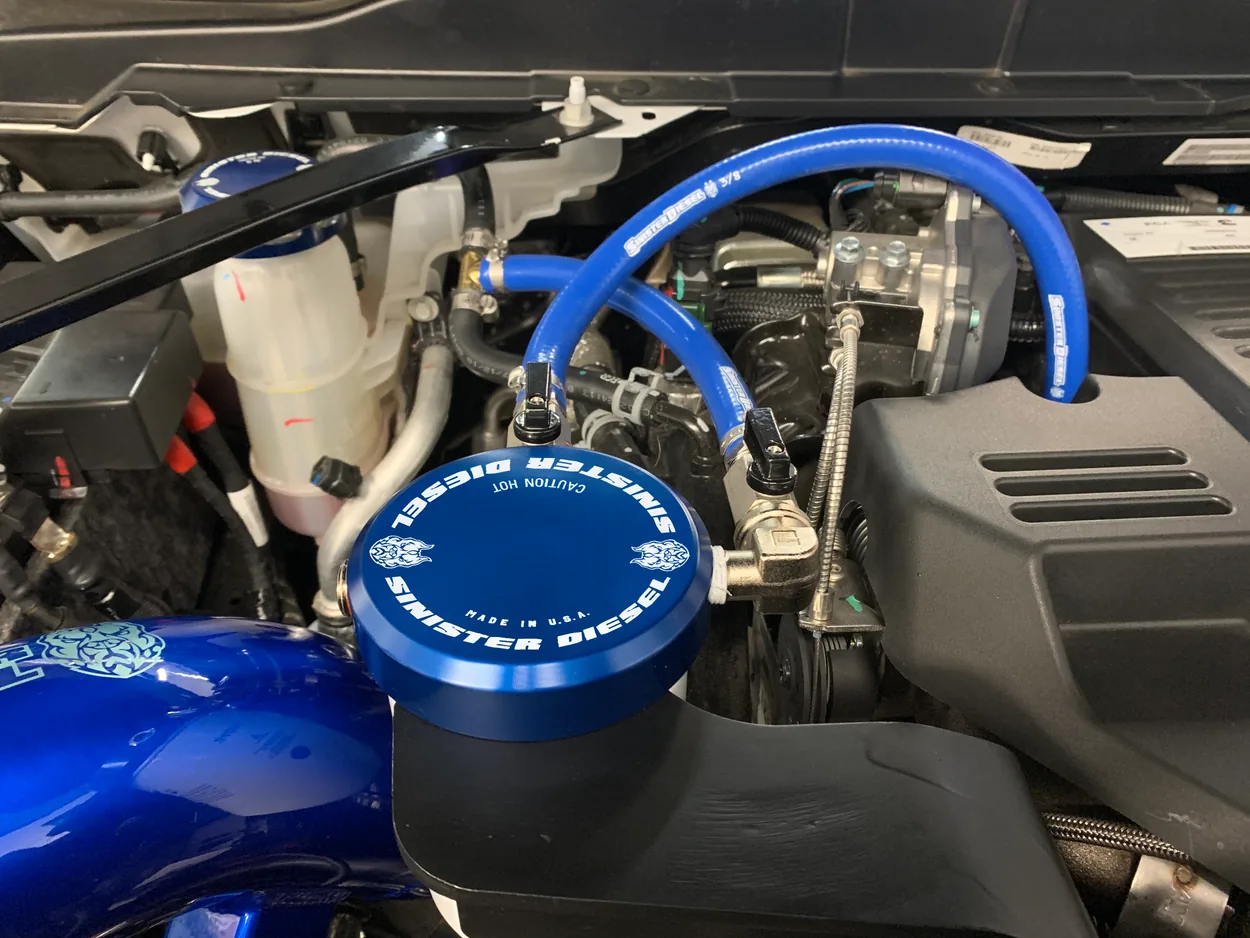

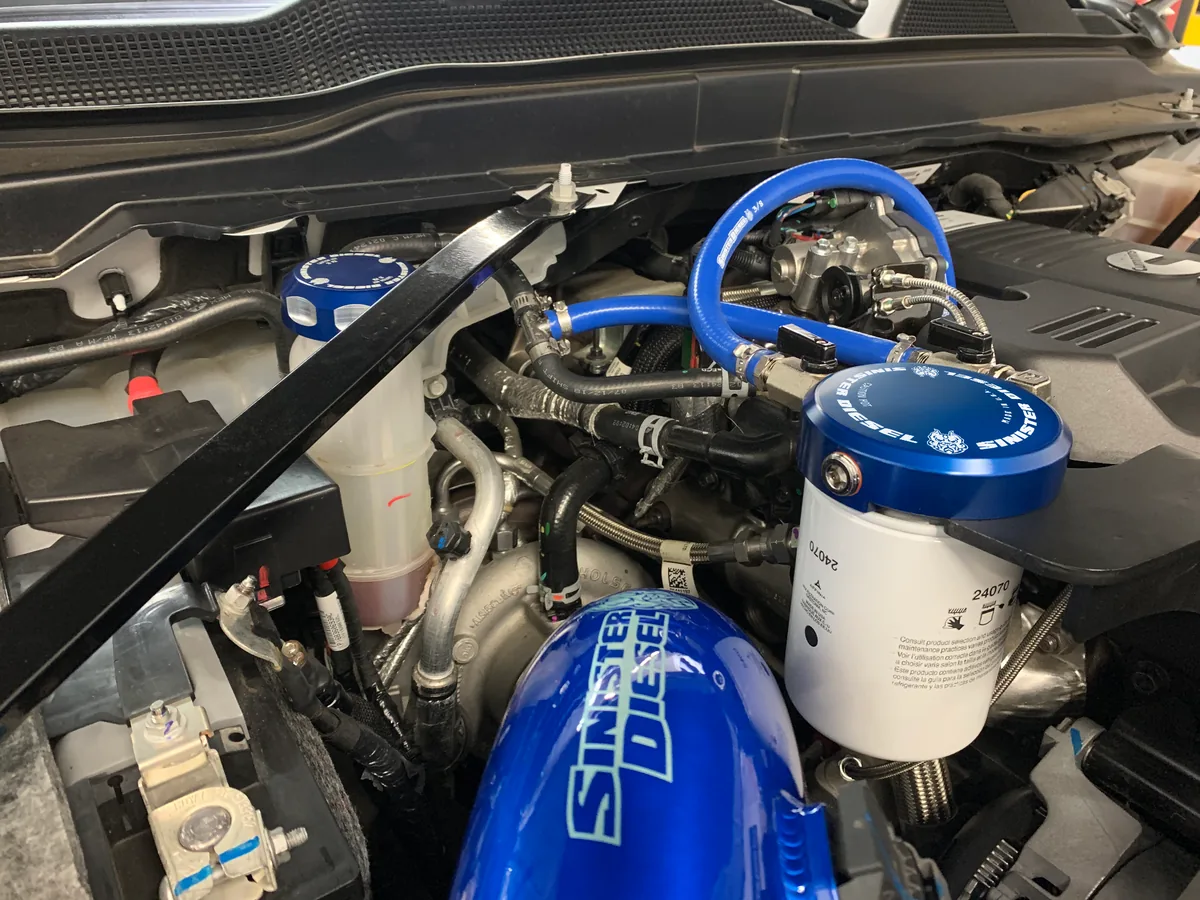

INSTALLED ON A RAM CUMMINS05 / KEEP IT WORKING
FILTER SERVICE MATTERS.
New filters may collect significant debris early on. Keep up with service so the system continues removing contaminants. Check the instructions for the specific kit you purchase.
500MILESFirst filter change
+1,500MILESSecond filter change
+3,000MILESThird filter change
EVERYOIL CHANGEOngoing maintenance
06 / COMMON QUESTIONS
CUMMINS COOLANT FILTER FAQ.
Answers to the questions Ram owners ask about heater cores, bypass filtration, and installation.
NEED MORE HELP? CONTACT OUR TEAM →Will a coolant filtration kit fix an already clogged heater core?
No. Filtration helps capture suspended debris and reduce additional buildup, but it does not dissolve deposits or open an already blocked heater core. If you have little or no cabin heat, diagnose the cooling and HVAC systems first.
Why does my Ram Cummins have little or no heat?
Restricted heater-core flow is one possible cause. Low coolant, air in the system, thermostat problems, and HVAC blend-door issues can also reduce heat. Confirm the cause before replacing parts.
Does the Cummins coolant filter restrict normal coolant flow?
The Sinister Diesel system uses a bypass filtration circuit to filter a portion of coolant at a time rather than placing a filter in series with the main cooling path. Correct installation and maintenance remain important.
How often should I change the coolant filter?
Our standard schedule is the first filter at 500 miles, the second after approximately 1,500 additional miles, the third after approximately 3,000 additional miles, and then at every oil change. Check the instructions for your specific kit.
Will this kit fit with my aftermarket cold air intake?
Not always. Some aftermarket intake systems can interfere with the filter mounting area. The kit is compatible with the factory intake and Sinister Diesel intake on specified applications. Verify clearance and model-specific installation notes before ordering.
Which Ram 2500 and 3500 trucks have available kits?
Product listings cover 2003–2007 5.9L Cummins, 2007.5–2012 6.7L Cummins, 2013–2018 6.7L Cummins, and 2019–2024 6.7L Cummins trucks. Confirm the exact engine, year, and any aftermarket modifications against the product listing.
PROTECTION STARTS WITH CLEANER COOLANT
DON'T WAIT UNTIL THE HEAT STOPS.
Find the Sinister Diesel coolant filtration kit built for your Cummins.
