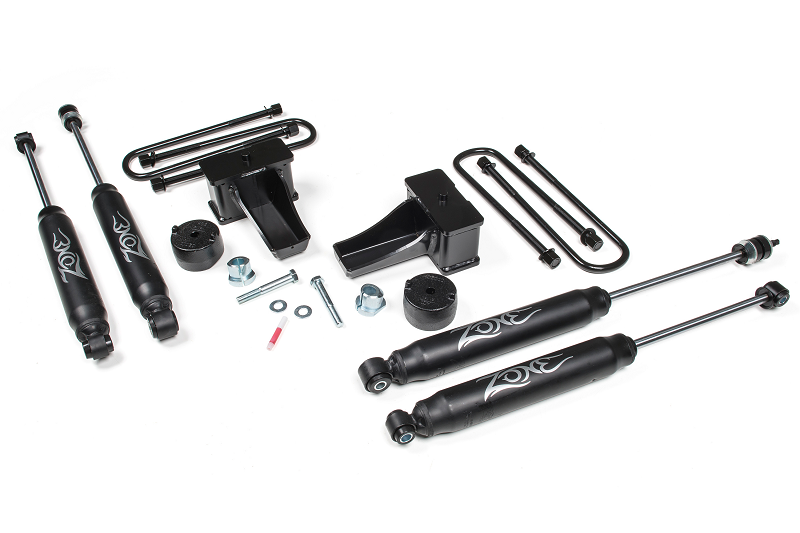

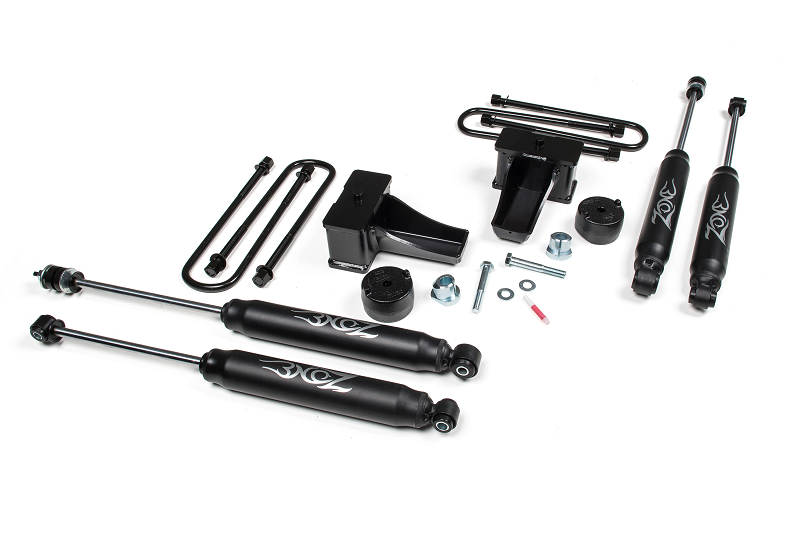

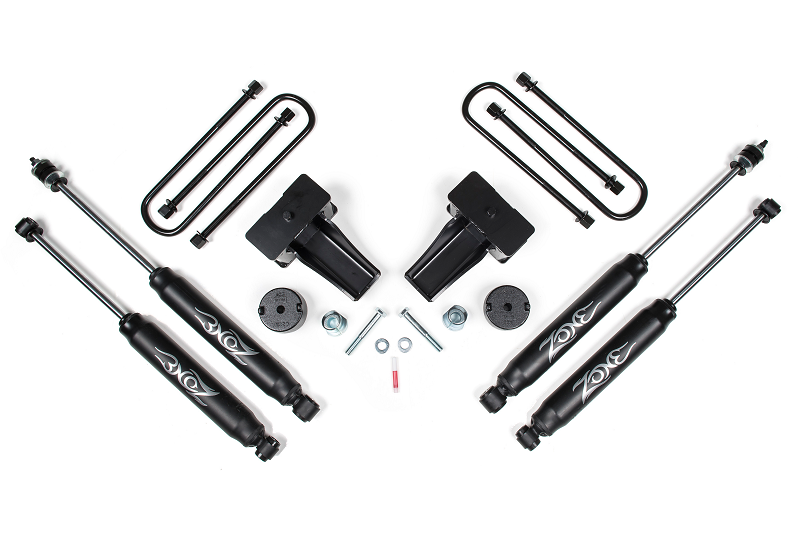

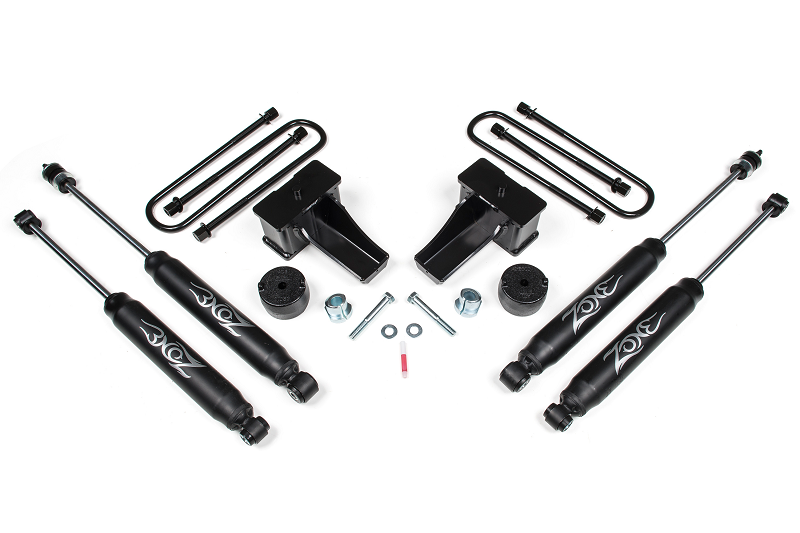

This kit was designed specifically for the 2011-16 F250 owner that is looking for a lifted and level look as well as room to stuff in 35" tires. The 2011-16 F250 came from the factory with only about 1" of rake (1" tail high). That leaves the trucks with a tail low stance when installing just a 2" front spacer kit. This new kit combines the existing 2" leveling kit (F1201) with a new 4" rear block. By replacing the 2" factory block with the new 4" block the stock rake is retained and results in a desirable stance for these trucks. The new rear block is a heavy duty fabricated design incorporating a 1-piece center tube and an integrated bump stop wing. U-bolts provided mount in the factory configuration (top-down). In the front, we've included upper ball joint cams to dial in the alignment perfectly for factory like ride and handling.
Note: Will not work with rear factory top mounted overloads
Quick Specs
- Front Lift Height: 2
- Front Lift Method: Spacer
- Rear Lift Height: 2
- Rear Lift Method: Block
- Difficulty Level 1-5: 3
- Wheel Size: 17x9
- Back Spacing: 4.5-5"
- Max Tire Size: 35x12.50
