Sinister Diesel Updated Components Kit for Late 6.0L Powerstroke
For engines built after 09/22/2004
Key Features
• Addresses known late-model 6.0L weak points
Includes critical factory updates introduced between late 2004 and 2007.
• Ideal to install while the turbo is removed
Most components are easily accessible during turbo service, saving time and labor.
• Improves fuel pressure, oil flow, and cooling system reliability
Targets common causes of injector wear, hot-start issues, and turbo failures.
• Uses proven Sinister Diesel upgrades
Includes the Sinister Billet Blue Spring Kit and other updated components.
Product Overview
This kit combines the most important factory updates and proven upgrades for late-model 6.0L Powerstroke engines built after 09/22/2004. Over the years, Ford revised several components to address fuel pressure loss, oil flow restrictions, high-pressure oil leaks, and cooling system issues. We’ve compiled those updates into one convenient package.
If your turbo is already coming out, this is the perfect time to install these parts. Most items in this kit are directly accessible with the turbo removed, making this a smart preventative upgrade that can save you from repeat labor and future failures.
One of the highlights is the Sinister Billet Blue Spring Kit. In as little as 30 minutes, this upgrade restores factory fuel pressure that has dropped due to a weak return spring. Most trucks see an increase of around 10 PSI. Higher fuel pressure helps prevent injector aeration, extends injector life, improves throttle response, quiets idle, and allows the turbo to spool more quickly.
What This Kit Addresses
• Restrictive factory turbo oil drain design
• Weak fuel pressure return spring
• Failure-prone factory turbo feed line
• Cooling system pressure control issues
• Common high-pressure oil leaks causing no-hot-start conditions

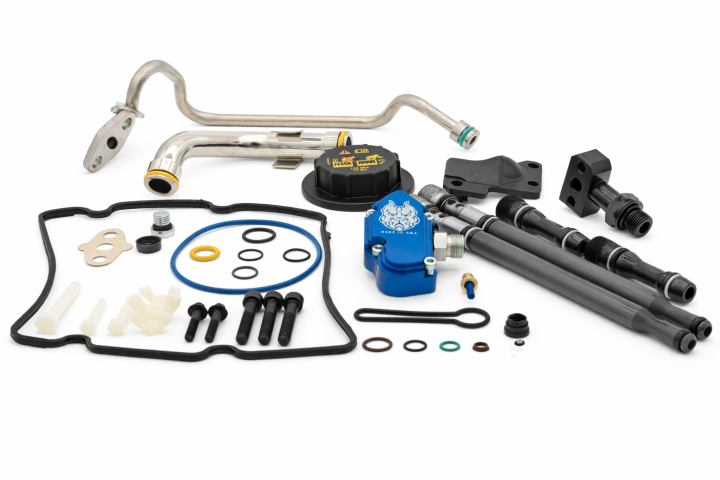

What’s Included
• Updated turbo oil drain tube
Replaces the restrictive factory drain that traps hot oil in the turbo.
• Sinister Billet Blue Spring Kit
Restores proper fuel pressure when the factory spring weakens.
• Updated turbo feed line
Eliminates the factory braided section known to fail.
• Degas bottle cap
Maintains proper cooling system pressure and operation.
• Stand pipe and dummy plug kit
Fixes common high-pressure oil leaks that cause hot-start problems.
• STC HPOP fitting update kit
Corrects a known factory failure point in the high-pressure oil system.
• All required O-rings and hard parts
Includes everything needed to rebuild the fuel pressure housing.
Why This Kit Makes Sense
Late-model 6.0L Powerstrokes suffer from predictable, well-documented issues. This kit targets those exact problem areas using updated designs and proven Sinister Diesel components. Installing these parts together—especially while the turbo is removed—helps restore drivability, improve reliability, and extend the life of your injectors, turbo, and high-pressure oil system.
This is one of the smartest preventative upgrades you can do on a late 6.0L.
Frequently Asked Questions
Q: What trucks does this kit fit?
A: This kit is designed for late-model 6.0L Powerstroke engines built after 09/22/2004. Always verify your engine build date before ordering.
Q: Do I need to remove the turbo to install this kit?
A: The kit does not require turbo removal, but it is highly recommended to install these components while the turbo is out. Most parts in this kit are easily accessible during turbo service, saving time and labor.
Q: What kind of fuel pressure increase can I expect from the Blue Spring Kit?
A: Most trucks see an increase of approximately 10 PSI. Restoring proper fuel pressure helps prevent injector aeration, improves throttle response, and extends injector life.
Q: Will this kit help with hard hot-start issues?
A: Yes. The included stand pipe, dummy plug kit, and STC HPOP fitting update address common high-pressure oil leaks that frequently cause no-hot-start or hard-hot-start conditions on the 6.0L.
Q: Is this kit meant for repairs or preventative maintenance?
A: Both. This kit is ideal if you’re already addressing issues, but it’s also an excellent preventative upgrade to avoid future failures that are common on late-model 6.0L engines.
Q: Does this kit include all seals and O-rings needed for installation?
A: Yes. All required O-rings and hard parts needed to rebuild the fuel pressure housing and complete installation are included.
Q: Will this kit change how my truck drives?
A: Many customers report smoother idle, quicker rev response, faster turbo spool-up, and overall improved drivability after installation—especially once fuel pressure is restored.
