FASS Fuel Systems Diesel System for 1999-2007 Ford Powerstroke 7.3L and 6.0L
Part No: TSF14180F140G
Superseded Part Number: TSF14140G
Fitment: Ford F-250, Ford F-350, Powerstroke 7.3L/6.0L (1999-2007)

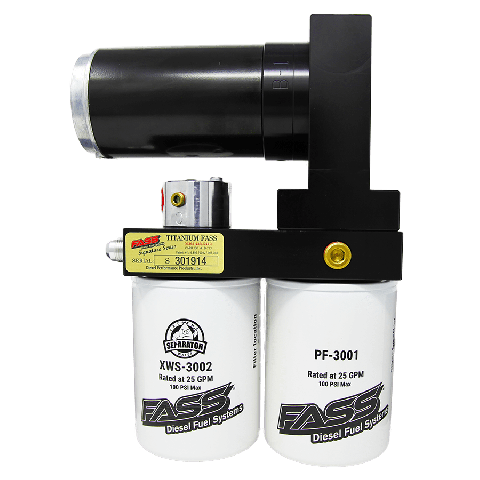

Top-Performing Titanium Signature Series Fuel System
The Titanium Signature Series Diesel Fuel System, featuring FASS Diesel Fuel Systems’ Revolutionary Whisper Technology, is designed for ultimate performance and durability. Rated at 140 gallons per hour (GPH) at 60-65 PSI, this system is capable of supporting Powerstroke engines with up to 700 HP, ensuring enhanced fuel delivery and filtration for extended injector life.
Advanced Filtration for Longer Injector Life
This system offers a 2-micron filtration rating, built-in water separation, and FASS’s patented air/vapor removal process. These features protect your Powerstroke’s injection system, significantly reducing the risk of injector failure caused by fuel-related issues.
Innovative Suction Tube and Bulkhead Fitting Design
The kit includes a 6061 T-6 billet aluminum bulkhead fitting and a PTFE Teflon suction tube, providing easy installation without the need to cut the filler neck. This ensures efficient fuel pickup, even with as little as 1/8 tank of fuel remaining.
Key Features of the FASS Titanium Signature Series System
FASS Whisper Technology (FWT)
Engineered for quiet diesel engines, FASS Whisper Technology reduces noise levels while increasing fuel flow rates. This feature was developed and tested for over two years to ensure high quality and durability.
Performance Radius Cuts (PRC)
PRC is an advanced machining technique that improves fuel flow by preventing air and vapor reintroduction into the system. It helps avoid restrictions and maintains smooth fuel delivery.
Mass Flow Return (MFR) Technology
MFR technology polishes your fuel by keeping it under positive pressure, removing air, vapor, dirt, and water. This guarantees cleaner fuel for your Powerstroke engine and supports better cold-weather performance when combined with the optional FASS Fuel Heater.
Easy Bolt-On Bracket Installation
The system’s new bolt-on brackets utilize the factory bed bolt, simplifying installation without the need for drilling or welding. Machined steel brackets ensure strong support and a quick install process.
1999-2007 Powerstroke 140 GPH System Features
- New Whisper Technology for quieter operation
- Bolt-on bracket for easy installation
- 140 GPH flow rating
- 2-micron filtration rating
- Removes water, air, and debris from diesel fuel
- Improves fuel mileage and engine performance
- Protects and extends the life of injectors
- Preset 60-65 PSI fuel pressure
- Optional electric heater and fuel pressure gauge ports
- Quietest motor on the market
- 1,000,000-mile motor life expectancy
- Limited lifetime warranty
Important Installation Notes
Installation of this kit on a cab and chassis may require modifications.
