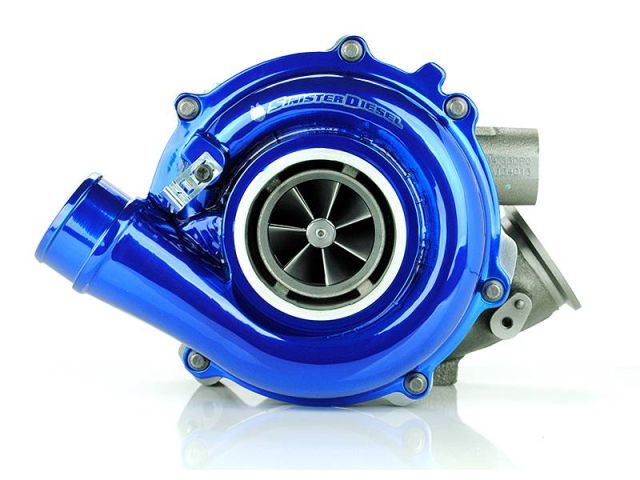

Sinister Diesel Pitbull Series® 1 Turbocharger
Fits 2003–2007 Ford F-250 / F-350 / F-450 / F-550 Super Duty and 2003–2005 Ford Excursion 6.0L Powerstroke
CARB EO # Pending
Currently not for sale in the state of California
Due to high demand, please expect 2-3 weeks before shipping.
Key Features
• Direct Drop-In Replacement – Installs in the stock turbo location with no modifications required.
• Anti-Surge Compressor Housing – Engineered to eliminate compressor surge and outperform similar designs.
• 10-Blade Turbine Wheel – Features taller vanes and a larger 66.45mm exducer / 72.5mm inducer for improved flow.
• Billet 6x6-Blade Compressor Wheel – 61.4mm inducer and 82mm exducer with 88mm extended tips for quicker spool-up and better efficiency.
• VSR High-Speed Balanced – Precision-balanced for smooth, reliable operation at high RPM.
• Stage 1 Performance – Supports power levels up to 425 horsepower with proper tuning and supporting mods.
• Compatible with All Major Tuners – Works seamlessly with SCT, Bully Dog, and other tuning platforms.
• 1-Year Sinister Diesel Warranty – Backed by industry-leading quality and support.
Product Overview
The Sinister Diesel Pitbull Series® 1 Turbocharger is the ultimate stock-location upgrade for your 6.0L Powerstroke. Designed for both daily driving and performance use, it delivers faster spool-up, lower EGTs, and improved throttle response while maintaining factory reliability.
With a larger billet compressor wheel and optimized 10-blade turbine, this turbo efficiently moves more air with less backpressure—helping your Powerstroke produce smoother, stronger power. Whether you’re towing, racing, or just want better drivability, the Pitbull Series® 1 is a proven upgrade that adds both performance and reliability.
Built from premium materials and VSR high-speed balanced for long-term dependability, this turbo is designed to handle the heat, boost, and demands of heavy use. Plus, as a true drop-in replacement, installation is simple and straightforward with no modifications required.
What’s Included
• Pitbull Series® 1 Turbocharger
• Installation Hardware (All Three Mounting Locations)
Q&A
Q: Do I need custom tuning to install this turbo?
A: Custom tuning is not required but is recommended for optimal performance and to take full advantage of the turbo’s airflow improvements.
Q: How much power can this turbo support?
A: With proper supporting mods and tuning, the Pitbull Series® 1 Turbo can support up to approximately 425 horsepower.
Q: What makes this turbo better than stock?
A: It features a billet 6x6-blade compressor wheel, anti-surge housing, and a high-flow turbine design—all engineered for faster spool, improved airflow, and greater efficiency.
Q: Is this turbo a direct replacement?
A: Yes, it installs directly in the stock location and includes all necessary mounting hardware.
Q: Does it work with all major tuning platforms?
A: Yes, it’s compatible with SCT, Bully Dog, Edge and other popular tuners.
Why Buy From Sinister Diesel
Since 2009, Sinister Diesel has been trusted by Powerstroke owners for proven performance, durability, and unmatched customer support. Every Pitbull Series® turbo is precision-balanced, tested, and built to outperform OEM units—so you get the power, reliability, and confidence your 6.0L deserves.
