SKU: sd-intrpipe-6.7p-hot-23 Sinister Diesel Hot Side Charge Pipe for High Output 2023-2026 Ford Powerstroke 6.7L

Fitment

Fits 2023+ Ford F-250 / F-350 / F-450 / F-550 6.7L Powerstroke High Output (HO)

Note:

• Compatible with Pickup and Cab & Chassis High Output (HO) models.
• Not compatible with 2023+ Standard Output (SO) models.
• Includes integrated temperature sensor provision specific to HO configuration.

Key Features

• 3" Mandrel-Bent Aluminum Tubing – Larger than the factory 2.5" pipe to reduce restriction and increase airflow capacity.
• Up to 61% Less Restriction vs. Stock – Verified through independent airflow testing.
• Integrated Temperature Sensor Provision – Designed specifically for 2023+ High Output engines.
• TIG-Welded Aluminum Construction – Built for strength and long-term durability under higher factory boost levels.
• 3/4" Wide Stainless Steel T-Bolt Clamp – Heavy-duty clamping force for secure sealing under load.
• New O-Ring & Retaining Clip Included – Eliminates the need to reuse fatigued factory components.
• 2-Year Warranty – Backed by Sinister Diesel quality and support.

Product Overview

The 2023+ 6.7L Powerstroke High Output engine operates at increased factory boost levels, placing greater demand on the charge air system. The factory hot-side pipe measures only 2.5 inches in diameter, creating a restriction point as airflow demand rises.

Sinister Diesel upgrades the system to a full 3" mandrel-bent, TIG-welded aluminum pipe engineered to reduce restriction and improve overall charge system efficiency.

Independent airflow testing confirms up to 61% less restriction compared to factory piping.

Lower restriction means the turbo does not have to work as hard to reach target boost — improving airflow efficiency under towing, heavy load, or tuned conditions.

This High Output version includes the proper temperature sensor provision to ensure seamless OEM integration and correct sensor placement.

More aluminum means more strength. Aluminum maintains its shape under pressure, preserving consistent airflow characteristics and improving structural integrity under higher boost levels.

Unlike many competitors, Sinister Diesel includes a new O-ring and retaining clip. Many single-pipe upgrades require reusing factory sealing components that have been heat-cycled and fatigued, increasing the risk of boost leaks.

What’s Included

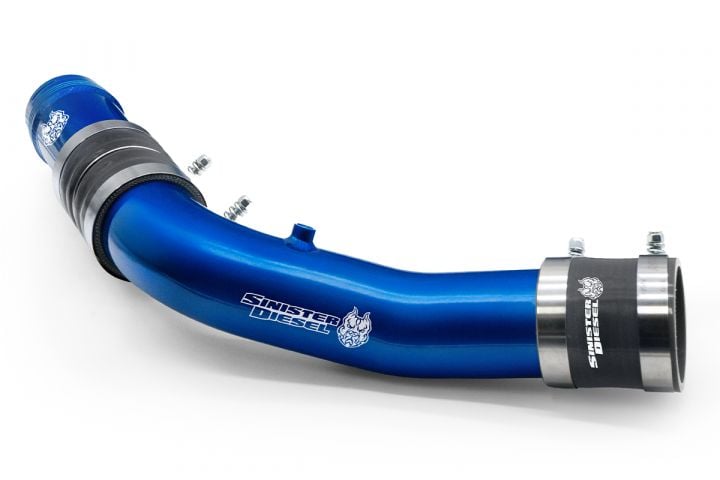

• 3" High Output-Specific Aluminum Hot-Side Charge Pipe with Sensor Provision
• 3/4" Wide Stainless Steel T-Bolt Clamp
• New O-Ring
• New Retaining Clip
• Required Hardware
• Installation Instructions
