SKU: SD-COOLFIL-7.3-W Sinister Diesel Coolant Filtration System (w/ WIX) for 1999-2003 Ford Powerstroke 7.3L


Purchase Sinister Diesel Coolant Filtration System (w/ WIX) for 1999-2003 Ford Powerstroke 7.3L
  • SKU: SD-COOLFIL-7.3-W Sinister Diesel Coolant Filtration System (w/ WIX) for 1999-2003 Ford Powerstroke 7.3L

  • $219.99


Sinister Diesel Coolant Filtration Kit – 7.3L Powerstroke
Fits 1999.5–2003 Ford F-250 & F-350 Super Duty and Excursion

Includes Genuine WIX 24070 Filter


Key Features

  • CNC-machined 6061 billet aluminum filter block – precision-built and anodized in Sinister Blue for corrosion resistance and durability

  • Genuine WIX 24070 coolant filter – proven high-flow, low-restriction filtration

  • Pre-assembled high-temp silicone hoses with crimped brass fittings – leak-free and pressure-tested for long-term reliability

  • Factory-style mounting bracket – installs using existing holes, no cutting or drilling required

  • Continuously filters coolant while the engine runs – removes casting sand, rust, and metal debris

  • Extends the life of your oil cooler, heater core, and water pump

  • Includes all necessary hardware for an easy bolt-on installation

  • Backed by a 1 Year Warranty


Reasons to Upgrade

  • Factory coolant systems often retain casting sand and metallic debris that circulate through the engine, clogging vital cooling passages

  • This system continuously filters small amounts of coolant, removing contaminants before they can cause expensive failures

  • Cleaner coolant means better heat transfer, longer component life, and fewer costly breakdowns

  • Designed as a bypass-style system, it filters efficiently without restricting coolant flow or risking overheating

  • Anodized billet aluminum construction and Sinister Blue finish give your engine bay a professional, high-performance appearance


Product Description
The Sinister Diesel Coolant Filtration Kit is one of the most effective upgrades you can make for your 7.3L Powerstroke. Even a new engine can circulate leftover casting sand, rust, and metal flakes through the coolant system—slowly clogging your oil cooler, heater core, and water pump. Over time, that contamination leads to overheating and expensive failures.

This kit solves the problem by adding a bypass-style filtration system that continuously cleans your coolant as the engine runs. The CNC-machined 6061 billet aluminum filter block mounts directly to existing factory holes for a clean, no-drill installation. It’s anodized in Sinister Blue for corrosion protection and durability.

Each kit includes a genuine WIX 24070 filter, known for its efficiency and reliability, along with pre-assembled multi-layer silicone hoses featuring crimped brass fittings for a professional, leak-free connection.

Installation is simple—most users can complete it in under two hours with basic hand tools. Once installed, you’ll enjoy cleaner coolant, lower maintenance costs, and extended engine life.


Recommended Filter Replacement Schedule

  • First filter: 500 miles

  • Second filter: 1,000 miles

  • Third filter: 3,000 miles

  • After that: every oil filter service

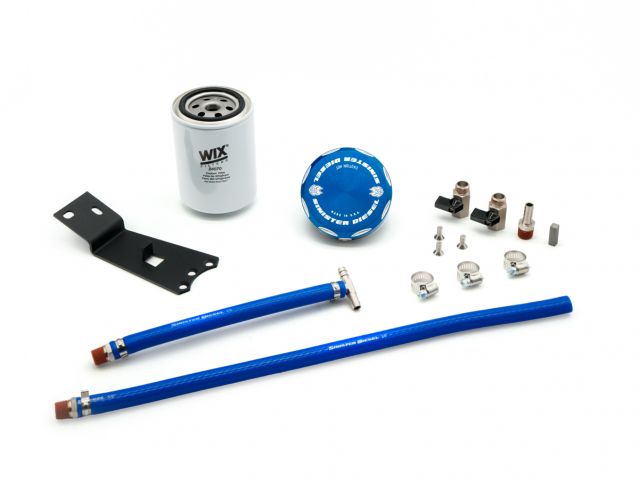

Kit Includes

  • CNC-Machined Billet Aluminum Filter Block (Anodized in Sinister Blue)

  • Genuine WIX 24070 Coolant Filter

  • Factory-Style Mounting Bracket

  • Pre-Assembled Silicone Hoses with Brass Crimp Fittings

  • All Fittings and Installation Hardware


Why Buy From Sinister Diesel
Since 2009, Sinister Diesel has been the leading name in Powerstroke reliability upgrades. Our coolant filtration kits are precision-built in the USA and trusted by diesel enthusiasts nationwide. Each kit is designed, tested, and backed by Sinister’s proven commitment to performance and quality—protecting your engine and giving your truck the reliability it deserves.

Q&A

What does this kit do?
It filters casting sand, rust, and metal shavings from your cooling system to protect the oil cooler, heater core, and water pump. Cleaner coolant keeps your 7.3 running cooler and more efficiently.


Why is it a bypass filter instead of inline?
The bypass system filters a small percentage of coolant at a time until all of it has passed through the filter. Inline systems can block flow if the filter clogs. With the Sinister Diesel bypass design, coolant continues to circulate even if the filter becomes full—no risk of overheating or engine damage.


What filter is included?
A genuine WIX 24070 spin-on coolant filter is included. It’s proven for high-flow, low-restriction performance and uses a standard 11/16-16 thread for easy replacement.


Does it change coolant chemistry?
No. The WIX filter is purely mechanical—it doesn’t add or remove any chemical additives and works perfectly with Extended Life Coolant (ELC).


What materials are used?
The filter block is CNC-machined from 6061 billet aluminum and anodized in Sinister Blue. The hoses are multi-layer high-temp silicone with pre-crimped, leak-proof fittings.


Is installation easy?
Yes. The mounting bracket uses existing factory holes—no drilling or cutting required. Everything you need for installation is included.


How long does installation take?
About 2 hours on average, depending on experience.


How often should the filter be replaced?
• First filter: 500 miles
• Second filter: 1,000 miles
• Third filter: 3,000 miles
• Then change with every oil filter service


What’s included in the kit?
• Billet aluminum filter block
• Anodized mounting bracket
• Pre-assembled silicone hoses
• Genuine WIX 24070 filter
• All fittings and hardware
• 1-year warranty


What’s the bottom line?
This kit is an easy, affordable way to extend the life of your 7.3 Powerstroke’s cooling system. Cleaner coolant prevents costly repairs and adds a professional Sinister Blue touch under the hood.

Shipping Information

  • Item Requires Shipping
  • 5.00 lbs.
  • W6" x H5" x L13"
  • Free Shipping to Continental US!

Specs

  • sd-coolfil-7_3-w

Vehicle Applications

2003 Ford F-250 7.3L

2003 Ford F-350 7.3L

2002 Ford F-250 7.3L

2002 Ford F-350 7.3L

2001 Ford F-250 7.3L

2001 Ford F-350 7.3L

2000 Ford F-250 7.3L

2000 Ford F-350 7.3L

1999 Ford F-250 7.3L

1999 Ford F-350 7.3L

Details

  • SKU:SD-COOLFIL-7.3-W
  • Item #:sd-coolfil-7_3-w
  • UPC #:841788101233
