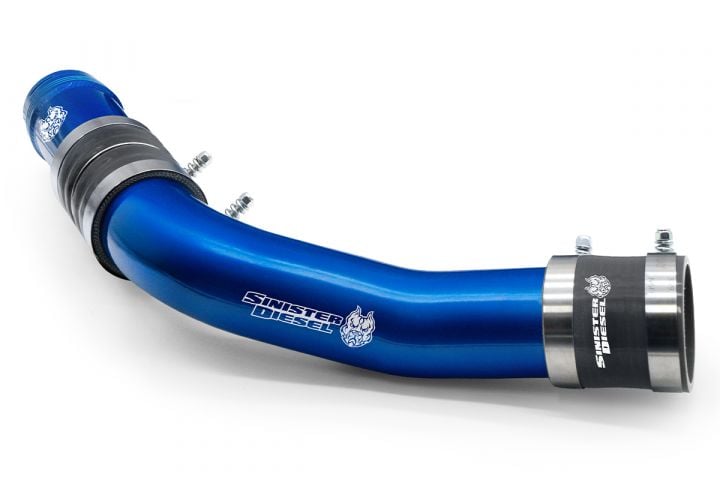

SKU: SD-6.7PIPH11-01-20 Sinister Diesel Hot Side Charge Pipe for 2011-2026 Ford Powerstroke 6.7L Standard Output

Fitment

Fits 2011–2026 Ford F-250 / F-350 / F-450 / F-550 6.7L Powerstroke (Standard Output)

Note:

• Compatible with Pickup and Cab & Chassis models.
• Not compatible with 2023+ High Output (HO) engines.
• For 2023+ HO models, see HO-specific version.

Key Features

• 3" Mandrel-Bent Aluminum Tubing – Larger than the factory 2.5" pipe to reduce restriction and increase airflow capacity.
• Up to 61% Less Restriction vs. Stock – Verified through independent airflow testing.
• TIG-Welded Aluminum Construction – Built for strength and long-term durability under boost.
• 3/4" Wide Stainless Steel T-Bolt Clamp – Heavy-duty clamping force for secure sealing under load.
• New O-Ring & Retaining Clip Included – Eliminates the need to reuse fatigued factory components.
• 2-Year Warranty – Backed by Sinister Diesel quality and support.

Product Overview

The factory hot-side charge pipe on the 6.7L Powerstroke measures only 2.5 inches in diameter, creating a restriction point as airflow demand increases. Under towing, heavy load, or tuned conditions, this bottleneck forces the turbo to work harder to move the same volume of air.

Sinister Diesel upgrades the system to a full 3" mandrel-bent, TIG-welded aluminum pipe engineered to reduce restriction and improve charge system efficiency.

Independent airflow testing confirms up to 61% less restriction compared to factory piping.

Lower restriction means the turbo does not have to work as hard to reach target boost — improving overall system efficiency and allowing the truck to scale with increased airflow demand.

This is not a cosmetic upgrade. It is a measurable airflow improvement.

More aluminum means more strength.

Some aftermarket options rely heavily on silicone sections instead of full aluminum construction. Silicone can expand under boost and affect airflow consistency. Aluminum maintains its shape under pressure, preserving consistent airflow characteristics and improving structural integrity.

Unlike many competitors, Sinister Diesel includes a new O-ring and retaining clip. Many single-pipe upgrades require reusing factory sealing components that have been heat-cycled and fatigued, increasing the risk of boost leaks.

What’s Included

• 3" Aluminum Hot-Side Charge Pipe
• 3/4" Wide Stainless Steel T-Bolt Clamp
• New O-Ring
• New Retaining Clip
• Required Hardware
• Installation Instructions

Why Choose Sinister Diesel

Since 2009, Sinister Diesel has focused on eliminating known diesel failure points through real-world testing and proven engineering. Our products are designed as long-term solutions—not temporary fixes—so you can drive with confidence knowing your truck is protected.
